Instrument Panel and Electrical Stuff

Here is the design of my panel. Click to enlarge

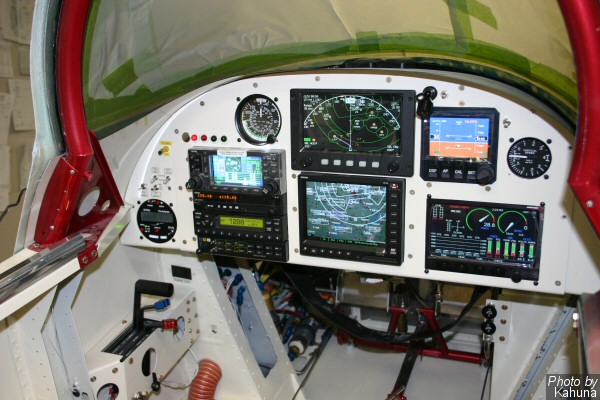

And here is the result

All of these thumbnails below are for my own use on the road. If I get into an electrical jam, all these pics can be pulled from any browser and I can trace my electrical gremlins. I have had to do this on the 6. Visio File here.

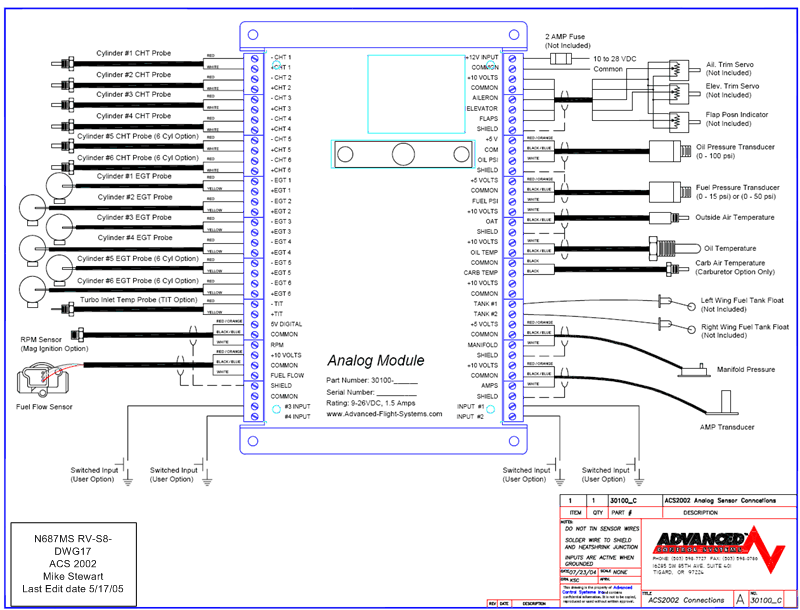

acs eng mon

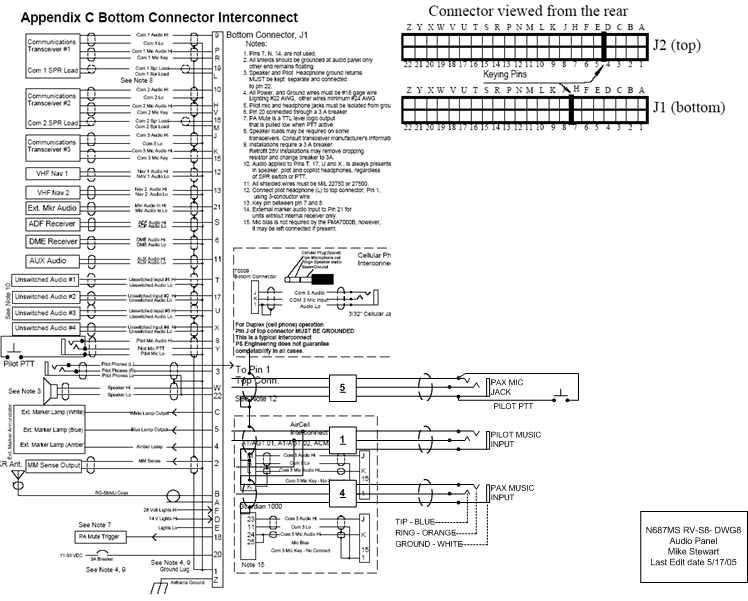

SL15 Audio Panel Top

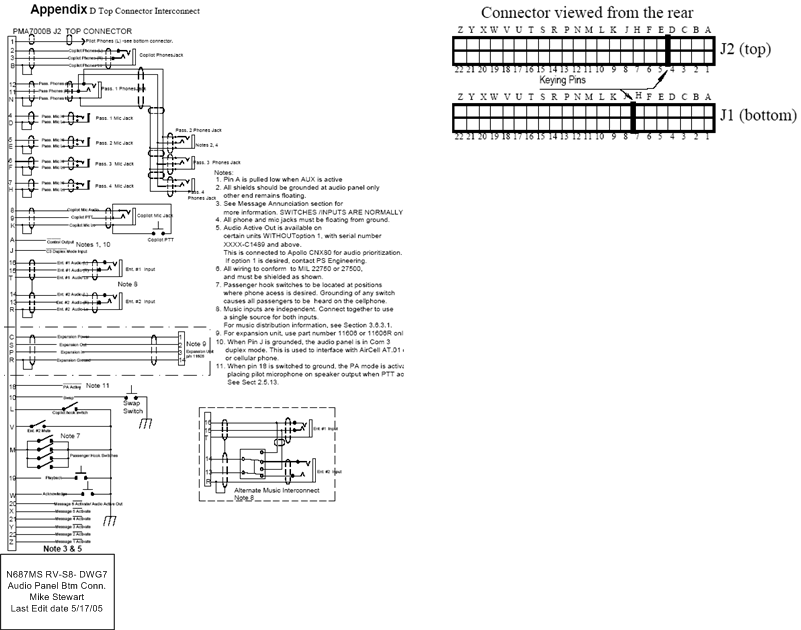

SL15 Audio Panel Bottom

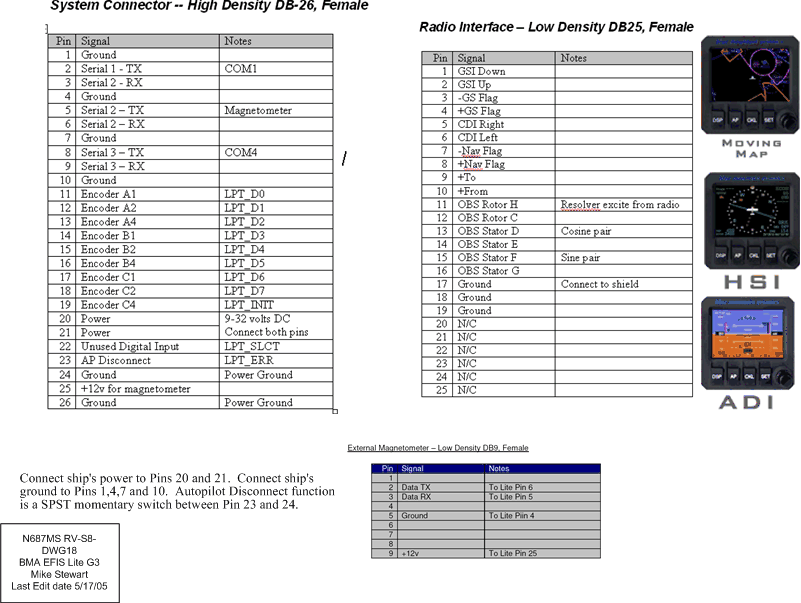

BMA EFIS G3

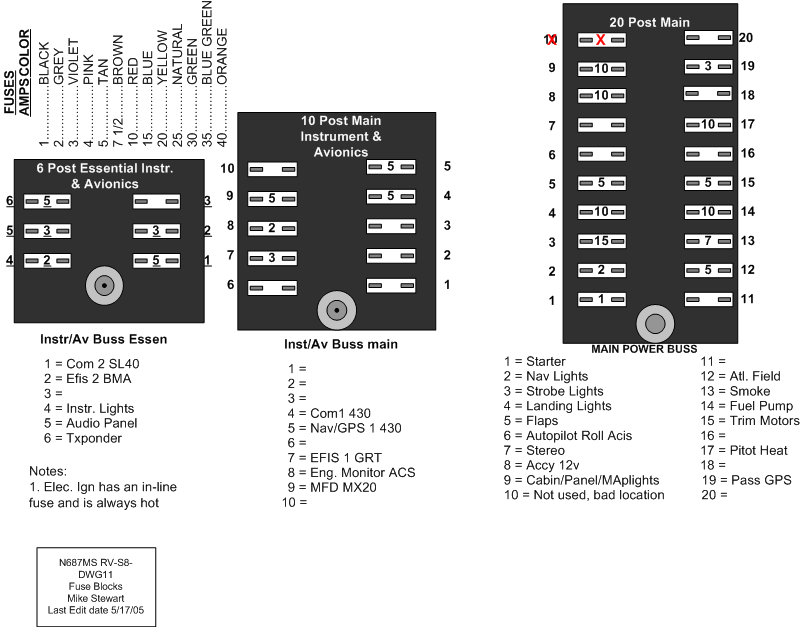

Fuses

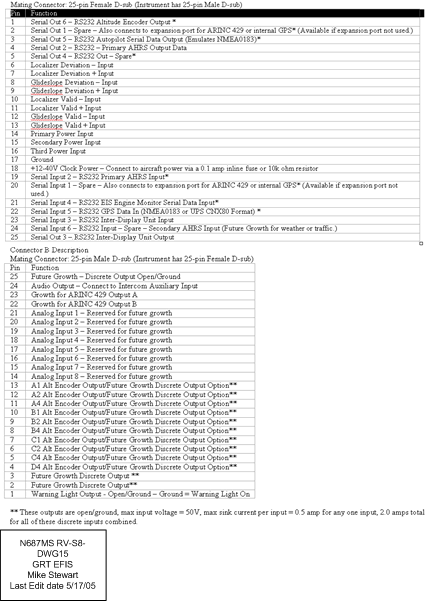

GRT EFIS

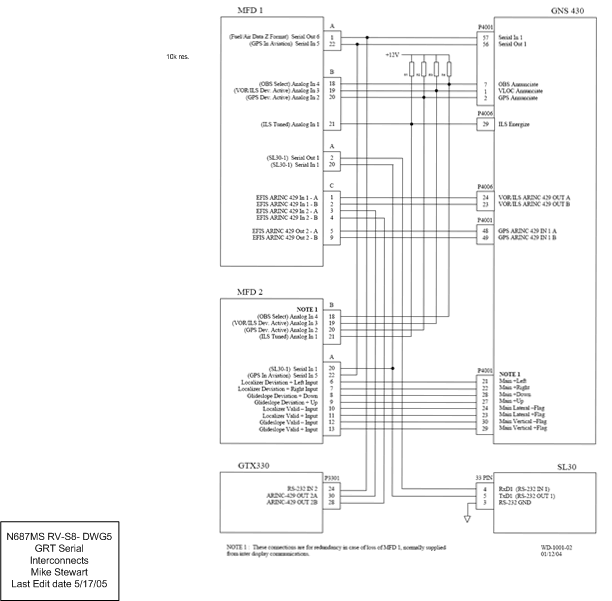

GRT defined Serial Interconnects

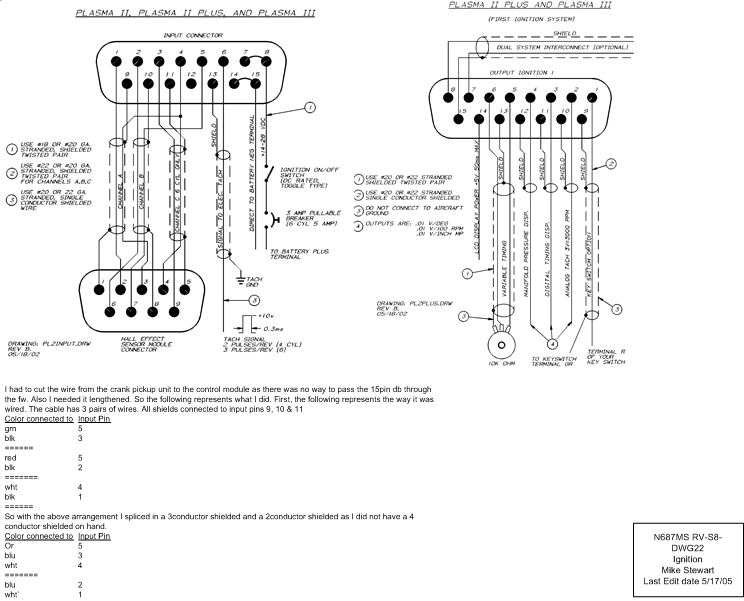

Lightspeed Ignition

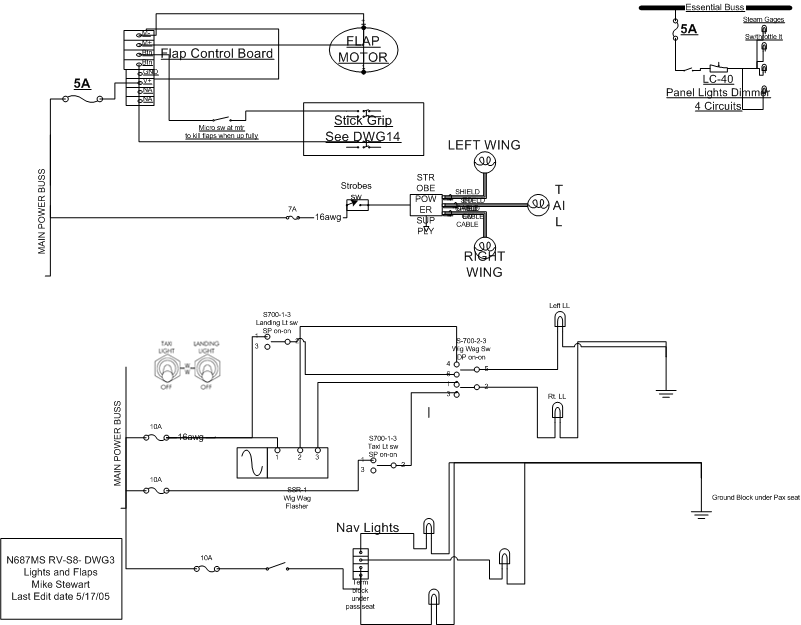

Lts and Flaps

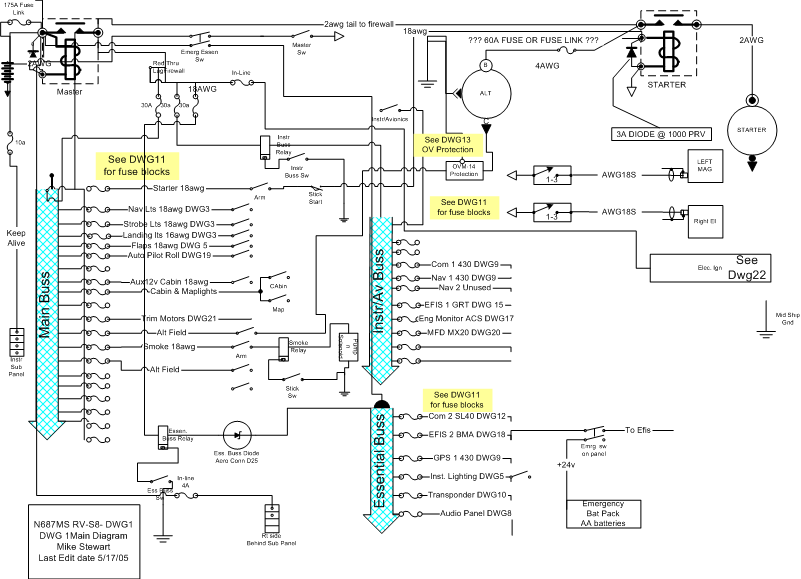

Main wiring Diagram

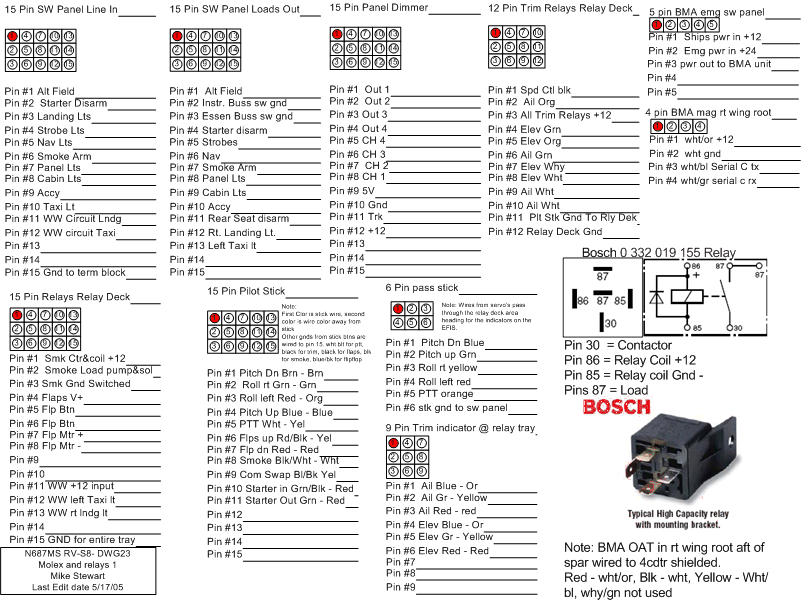

Molex Connectors 1

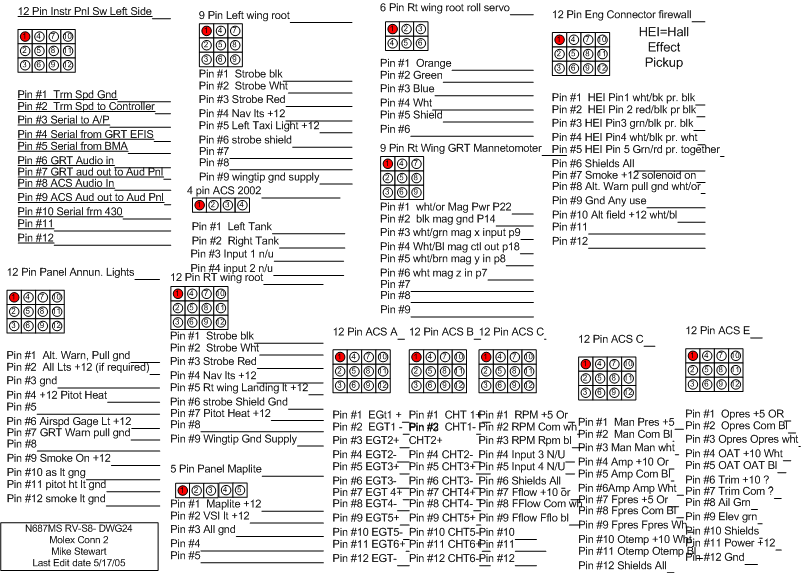

Molex Connectors 2

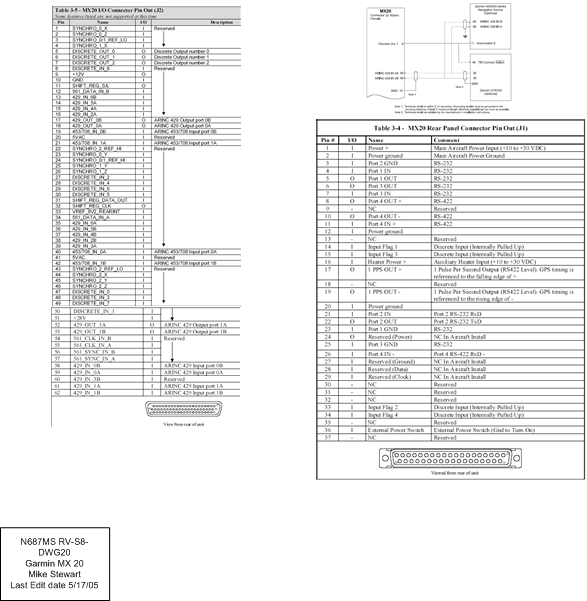

MX20

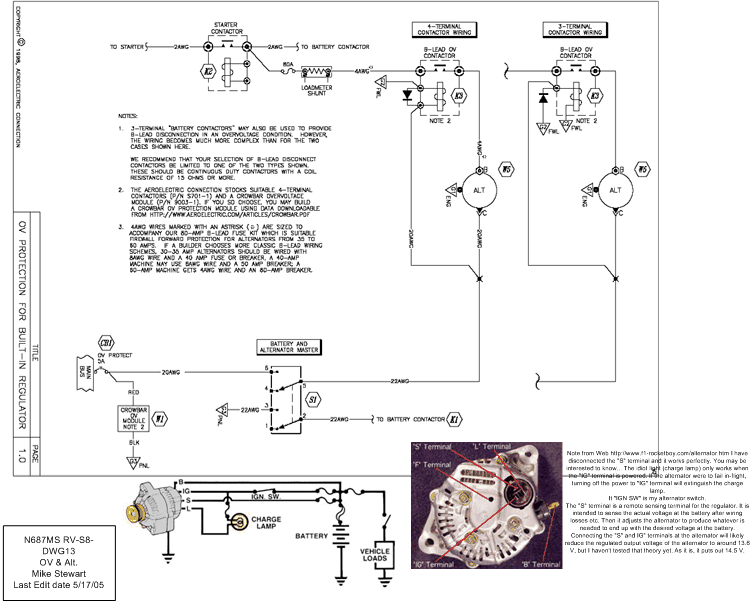

Overvolt and Alt

My Serial Interconnect

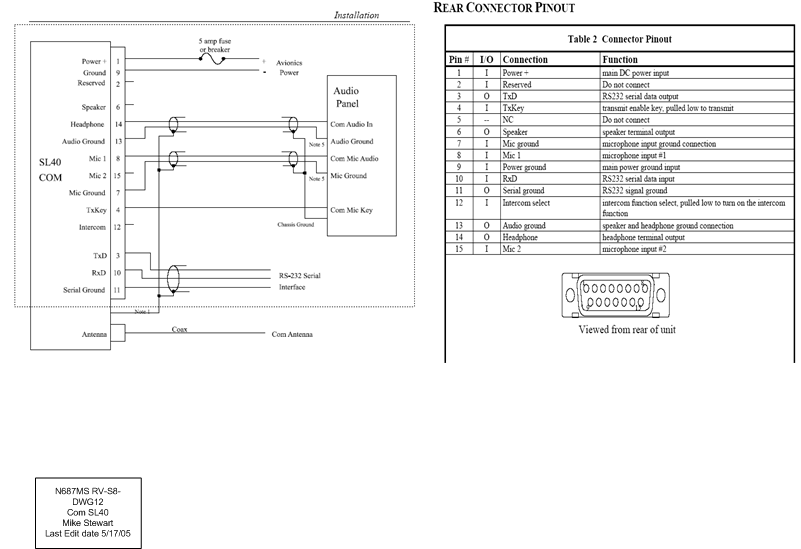

SL40 Com

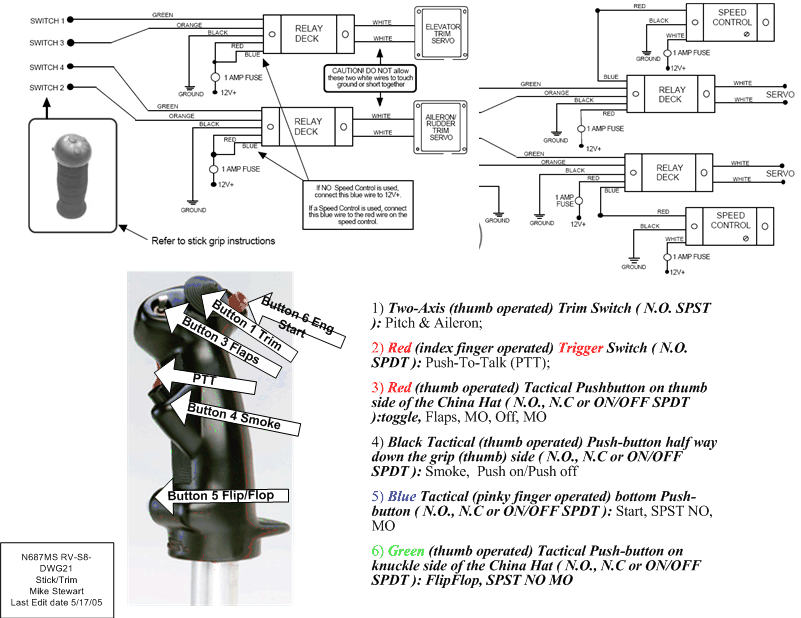

Stick and Relays

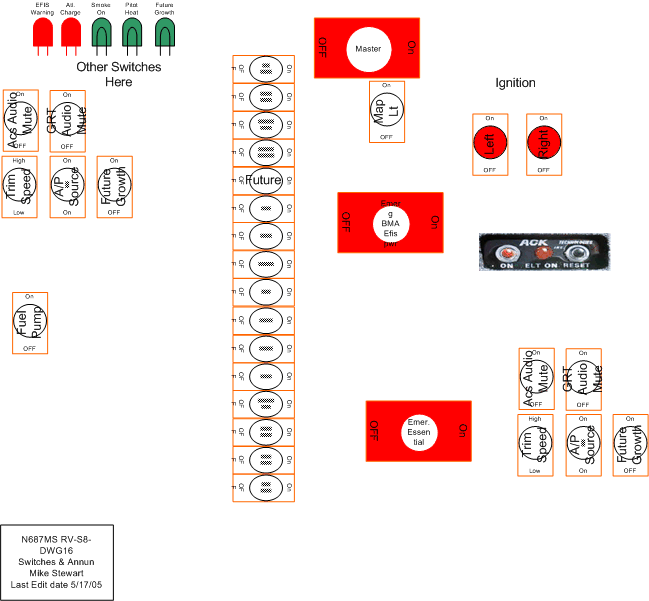

Misc switches

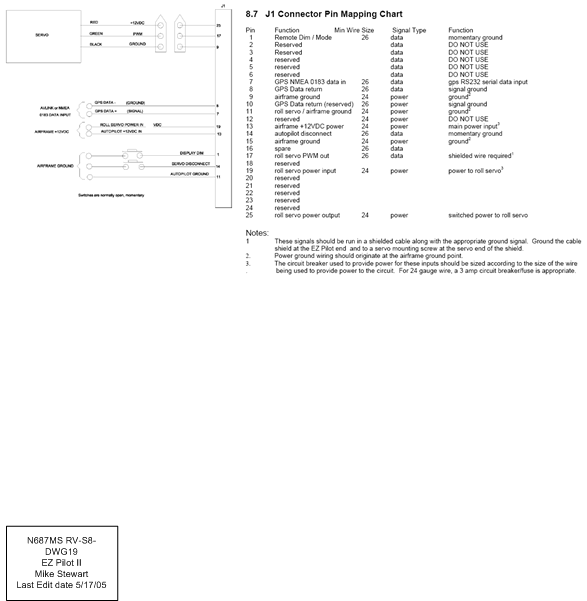

Trio EZ Pilot
